No. | A | B | H | H1 |
A30036 | 72 mm 2.83" | 40 mm 1.57" | 117 mm 4.60" | 18.5 mm 0.73" |

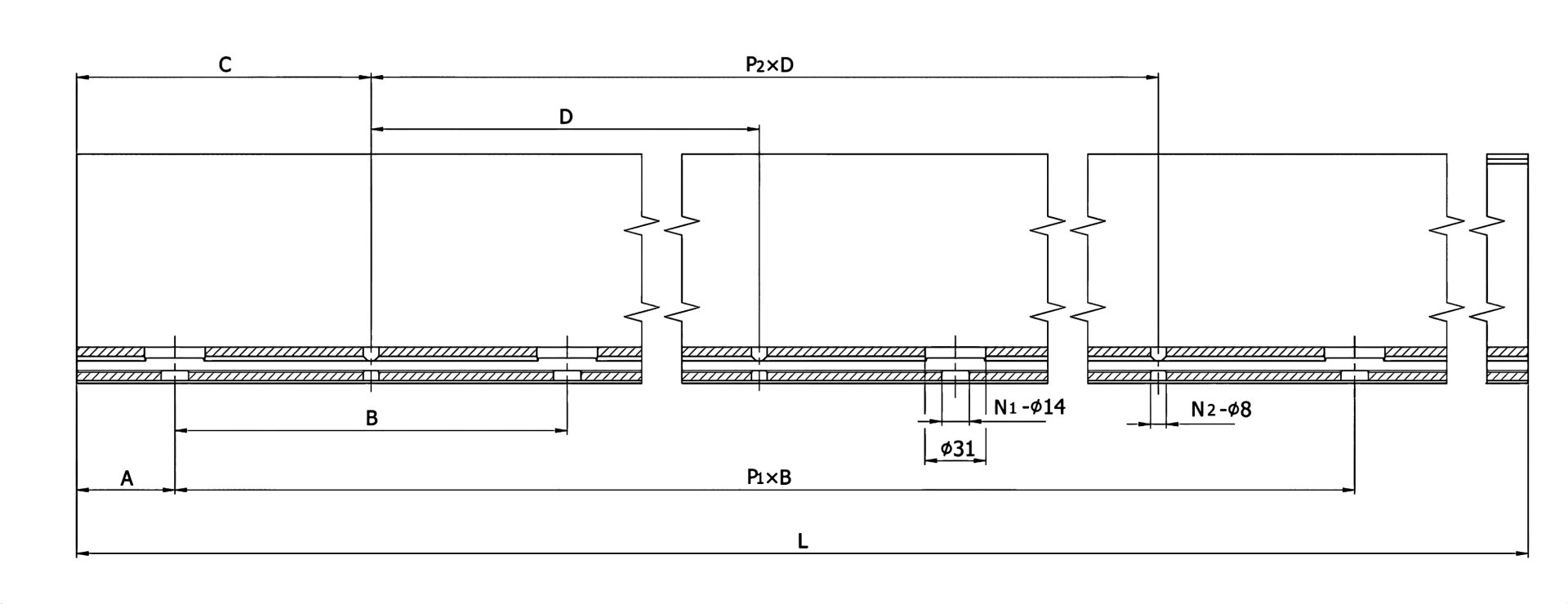

L mm | A mm | B mm | N1 | P1 | C mm | D mm | N2 | P2 |
2500 | 50 | 200 | 13 | 12 | 150 | 1000 | 3 | 2 |
3000 | 100 | 200 | 15 | 14 | 200 | 1000 | 3 | 2 |
5000 | 100 | 200 | 25 | 24 | 200 | 1000 | 5 | 4 |
6000 | 100 | 200 | 30 | 29 | 200 | 1000 | 6 | 5 |
Products
No. | A | B | H | H1 |
A30036 | 72 mm 2.83" | 40 mm 1.57" | 117 mm 4.60" | 18.5 mm 0.73" |
L mm | A mm | B mm | N1 | P1 | C mm | D mm | N2 | P2 |
2500 | 50 | 200 | 13 | 12 | 150 | 1000 | 3 | 2 |
3000 | 100 | 200 | 15 | 14 | 200 | 1000 | 3 | 2 |
5000 | 100 | 200 | 25 | 24 | 200 | 1000 | 5 | 4 |
6000 | 100 | 200 | 30 | 29 | 200 | 1000 | 6 | 5 |
