No. | A | B | H |
A30000 + A38400 | 45 mm 1.77" | 24 mm 0.94" | 120 mm 4.72" |
L mm | A mm | B mm | P1 | C mm | D mm | N2 | P2 |
2500 | 50 | 200 | 12 | 150 | 1000 | 3 | 2 |
3000 | 100 | 200 | 14 | 200 | 1000 | 3 | 2 |
5000 | 100 | 200 | 24 | 200 | 1000 | 5 | 4 |
6000 | 100 | 200 | 29 | 200 | 1000 | 6 | 5 |
Side Mount Aluminum Channel

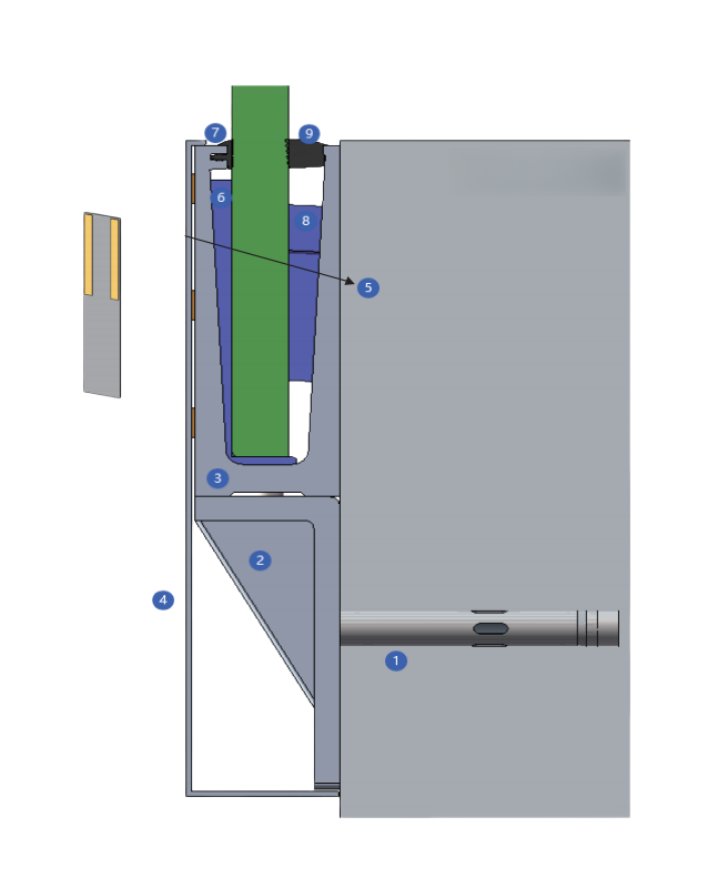

Installation Diagram
1. Drill holes
2. Install the mounting plate
3. Fix the aluminum channel
4. Stick the cladding
5. Stick the end caps
6. Insert the outside wedges
7. Install the outside rubber
8. Put in glass panel & Insert the inside wedges
9. Install the inside rubber
